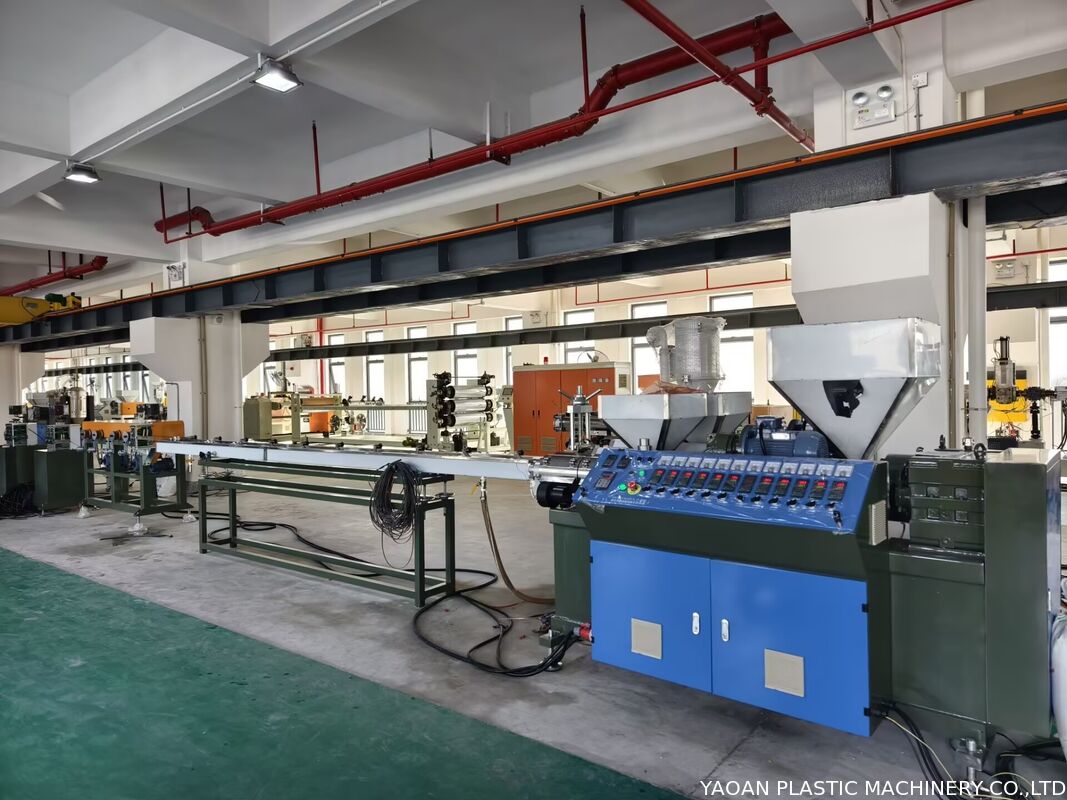

YAOAN Φ55/30 Three-Color Synthetic Rattan Extrusion Machine

Professional Plastic Rattan Extrusion Line for Furniture & Woven Products

1. Product Introduction

2. Main Structure & Configuration Details

(1) Φ55 Single Screw Main Extruder

• Screw diameter: Φ55mm
• Screw L/D ratio: 30:1
• Barrel and screw material: high-quality 38CrMoALA, nitride treatment, high hardness, wear-resistant and corrosion-resistant
• Stable plasticization, uniform extrusion, suitable for PE, PP and other plastic raw materials
• Equipped with precision temperature control system, the temperature of each zone is independently controlled, and the error is small

(2) Φ30 Two-color Auxiliary Extruder

• Two sets of Φ30 single-screw extruders, used for color masterbatch and color material extrusion
• Realize three-color co-extrusion to produce colorful rattan, variegated rattan, floral rattan, etc.
• Color ratio is stable and adjustable, color blending is uniform, no color difference

(3) High-efficiency Screen Changer

• Equipped with a special hydraulic / manual screen changer for the rattan machine
• Effectively filter impurities, black spots, and lumps in molten plastic
• Ensure the surface of the finished rattan is smooth, flawless, not broken, and improve product qualification rate
• Simple operation, fast screen change, no need to stop production for a long time

(4) 6-meter Cooling Water Tank

• Length: 6 meters
• Use constant temperature circulating water cooling system
• Make the extruded rattan cool and shape quickly and evenly
• Good stability, not easy to deform, good roundness and straightness of rattan

(5) 4-wheel Traction + Cutting / Winding System

• Option A: 4-wheel traction + cutting machine
  • Four-wheel traction, strong force, stable operation, no slipping
  • Automatic fixed-length cutting, accurate size, high efficiency

• Option B: 4-wheel traction + winder
  • Continuous winding into rolls, convenient for storage and transportation
  • Tension is adjustable, the rattan is not stretched or deformed


3. Technical Performance

• Production line speed: up to 80m/min (80 meters per minute)
• Applicable materials: PE, PP, plastic rattan special material
• Applicable products: round rattan, flat rattan, pearlescent rattan, three-color rattan, embossed rattan, special-shaped rattan, etc.
• Voltage: according to customer's local standard (380V/220V, 50Hz/60Hz)
• Features: high output, low energy consumption, stable operation, simple operation, long service life

4. Advantages of YAOAN Brand

• Professional manufacturer of plastic extrusion machinery with many years of experience in R&D and production of rattan extrusion lines
• The whole line has reasonable design, stable operation, low failure rate and convenient maintenance
• Three-color co-extrusion effect is good, color is bright and durable, not easy to fade
• High-speed production up to 80 meters per minute to improve customer production capacity
• Customized service: can be matched with different molds, cutters or winding machines according to customer product requirements
• Complete after-sales service, providing installation, commissioning and technical training

5. Application Scope

• Outdoor rattan furniture, rattan chairs, rattan sofas
• Home woven baskets, storage baskets
• Rattan decorative strips, shoe materials, rattan bags
• Various plastic imitation rattan crafts

Different rattans:


Final rattan application:


Machine shipment:

YAOAN company plant view:

Packaging and shipping:

What is our service system?

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
